Components Cases 2U Supermicro CSE-825MBTQC-R802LPB

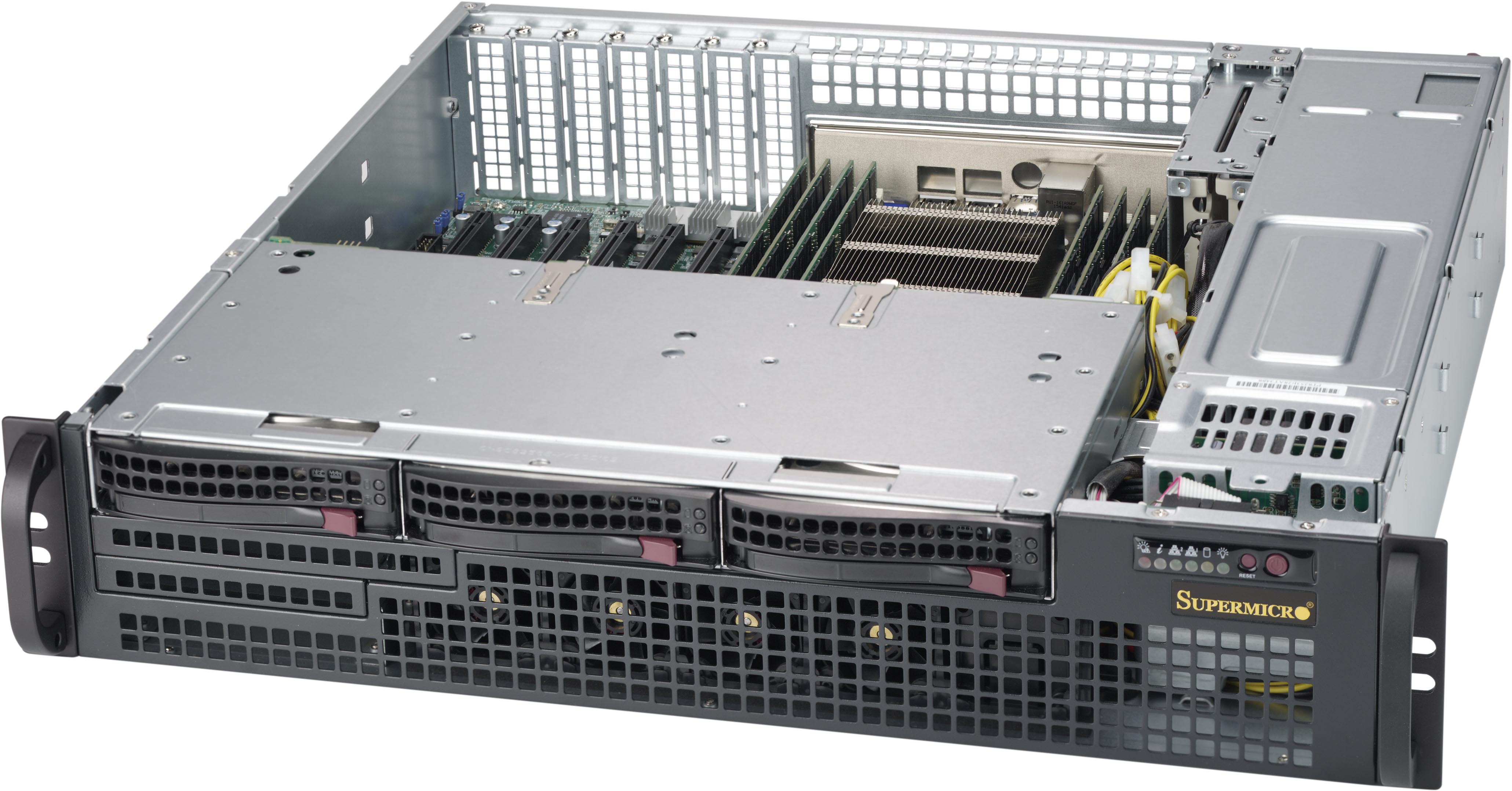

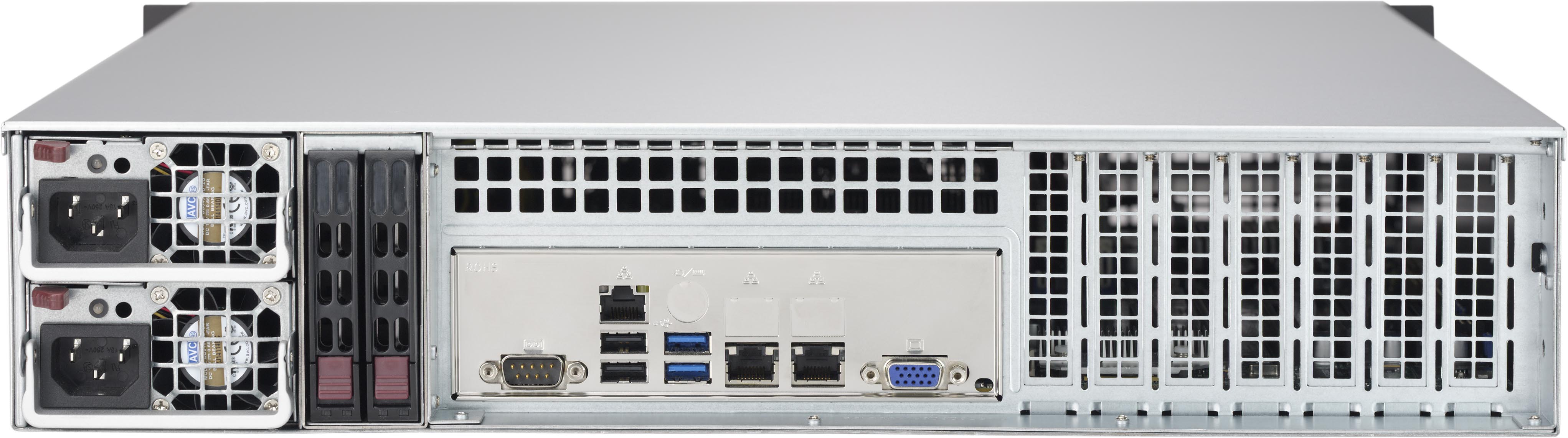

Supermicro CSE-825MBTQC-R802LPB

Supermicro CSE-825MBTQC-R802LPB

2U chassis supports for maximum motherboard sizes - EE-ATX 13.68" x 13", E-ATX 12" x 13", ATX 12" x 10" motherboards 3 x 3.5" hot-swap SAS/SATA drive bay with SGPIO, optional 2 x 2.5" hot-swap SAS/SATA drive bay w/ full SES-II support on SAS motherboards

We also offer six months of free collocation in our TIER III data center.

Components are not the end — ask us for a custom server configuration. We will design the server, assemble it, expertly set it up, and provide extended or NBD warranty.

Product code 202.349350
Part number CSE-825MBTQC-R802LPB
EAN 672042291595
Manufacturer Supermicro
Availability
In stock 0 pc
Stock allocation and delivery options
Delivery across USA
Wednesday 8. 5. at the latest Saturday 11. 5.
Supplier availability In stock 12 pc
Warranty 24 months
Weight 17.42 kg
The price includes all legal fees
$ 737.92
pc
Add to compare list
  1. Parameters

Detailed information

Key Features

  1. 2U chassis supports for maximum motherboard sizes - EE-ATX 13.68" x 13", E-ATX 12" x 13", ATX 12" x 10" motherboards
  2. 3 x 3.5" hot-swap SAS/SATA drive bay with SGPIO, optional 2 x 2.5" hot-swap SAS/SATA drive bay w/ full SES-II support on SAS motherboards
  3. 3-port SC825M SAS3 12Gbps TQ backplane, support up to 3x 3.5-inch SAS3/SATA3 HDD/SSD
  4. 1U 800W Redundant Power Supply 76mm width, W/PMbus, Titanium
  5. 7 low-profile expansion slot(s)
  6. 4 x 4cm high-performance counter-rotating PWM fan(s) with optimal fan(s) speed control
  7. Optional 1 x 4cm high-performance counter-rotating PWM fan(s) with optimal fan(s) speed control



Product SKUs
CSE-825MBTQC-R802LPB
  • SuperChassis 825MBTQC-R802LPB

Form Factor
  • 2U chassis supports for maximum motherboard sizes - EE-ATX 13.68" x 13", E-ATX 12" x 13", ATX 12" x 10" motherboards

Processor Support
  • Dual and Single Intel® and AMD processors

Dimensions
Height
  • 3.5" (89 mm)
Width
  • 17.2" (437 mm)
Depth
  • 17.7" (450 mm)
Gross Weight
  • 42 lbs (19.05 kg)
Packaging (W x H x L)
  • 23.4" (594 mm) x 9.9" (251 mm) x 32.5" (826 mm)
Available Color
  • Black

Expansion Slots
  • 7 low-profile expansion slot(s)

Drive Bays
  • 3 x 3.5" hot-swap SAS/SATA drive bay with SGPIO
  • Optional 2 x 2.5" hot-swap SAS/SATA drive bay w/ full SES-II support on SAS motherboards

Backplane
  • 3-port SC825M SAS3 12Gbps TQ backplane, support up to 3x 3.5-inch SAS3/SATA3 HDD/SSD

Peripheral Drives
  • Optional 1 x slim DVD-ROM drive bay
  • Optional 2 x USB 2.0 ports
  • Optional 1 x COM port tray

Front Panel
Buttons
  • Power On/Off button
  • System Reset Button
LEDs
  • 2 Network Activity LEDs
  • HDD activity LED
  • Power Status LED
  • Power Fail LED
  • System Information LED
Systems Cooling
Fans
  • 4 x 4cm high-performance counter-rotating PWM fan(s) with optimal fan(s) speed control
  • Optional 1 x 4cm high-performance counter-rotating PWM fan(s) with optimal fan(s) speed control

Operating Environment (System)
Operating Temperature Range
  • 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
  • 5% - 95% (non-condensing)

Power Supply
1U 800W Redundant Power Supply 76mm width, W/PMbus, Titanium
Power Efficiency
  • 96%
Total Output Power and Input
  • 800W with Input 100 - 240Vac
  • 800W with Input 200 - 240Vdc
AC Input Frequency
  • 50-60Hz
Dimensions (L x W x H)
  • 336 x 76 x 40 mm
Output Type
  • Backplanes (gold finger)
+12V
  • Max: 66A (100Vac - 240Vac)
  • Max: 66A (200 - 240)
+5Vsb
  • Max: 4A / Min: 0A
Power Distributor
  • PDB-PT825-8824
  • O/P: 12V/75
  • +5V Max: 30
  • +3.3V Max: 24
  • -12V Max: 0.6
Certification
  • Titanium Certified  Titanium Certified

Regulatory (Power Supply)
Power Supply Safety / EMC
  • BSMI
  • CCC
  • CE/EMC
  • FCC class A
  • TUV/CB
  • UL/CUL
Standard Parts List
  Part Number Qty Description
Air Shroud MCP-310-29019-0N 1 SC823M Intel DP X10 Universal Mylar Air Shroud, 12x13MB
HD Backplane BPN-SAS3-825MTQ-P 1 3-port SC825M SAS3 12Gbps TQ backplane, support up to 3x 3.5-inch SAS3/SATA3 HDD/SSD
Cable(S) CBL-0071L 1 CBL,FRONT CNTL,16 TO 16 PIN,RA,RND TUBE,75CM,28AWG
Cable(S) CBL-0160L 2 NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt)
CD-ROM & Accessory MCP-290-00041-0B 1 Black DVD dummy cover for SC825M
Fan(s) FAN-0156L4 4 40x40x56 mm 13K-11K RPM Counter-rotating Fan,RoHS/REACH
Front Panel FPB-FP836-D 1 Front control board Dual color LED(FP836-D)forSC823M,825,825M,828,829,835,836
Cooling Fan & Accessory MCP-320-82502-0B 1 Fan Tray for Five 4056 Fans, for 825M
Cooling Fan & Accessory MCP-340-00035-0B 1 Dummy fan 40x56mm for 40x56 counter-rotating fan (cost-effective)
Drive Tray(s) MCP-220-00075-0B 3 Black gen 5.5 hot-swap 3.5"; HDD tray
Drive Tray(s) MCP-220-82501-0N 1 HDD cage housing 3 trays for SC825M
Power Distributor PDB-PT825-8824 1 SC825 24PIN REDUNDANT POWER DISTRIBUTOR
Power Supply & Accessory PWS-802A-1R 2 1U 800W 100-240Vac/47-63Hz, and DC240 input
Mounting Rail(s) MCP-290-00053-0N 1 set Rail set, quick/quick, default for 2,3U 17.2";W
Rear Window MCP-240-82608-0N 1 216B/826B LP rear window,RoHS/REACH,PBF

Parameters

Depth (mm) 450
2.5" Drive bays 0
3.5" Drive bays 3
HDD disks
NVMe slots
Efficiency certification Titanium
Size in U 2
Power (W) 800
