Components Cases 2U Supermicro CSE-825MBTQC-R802WB

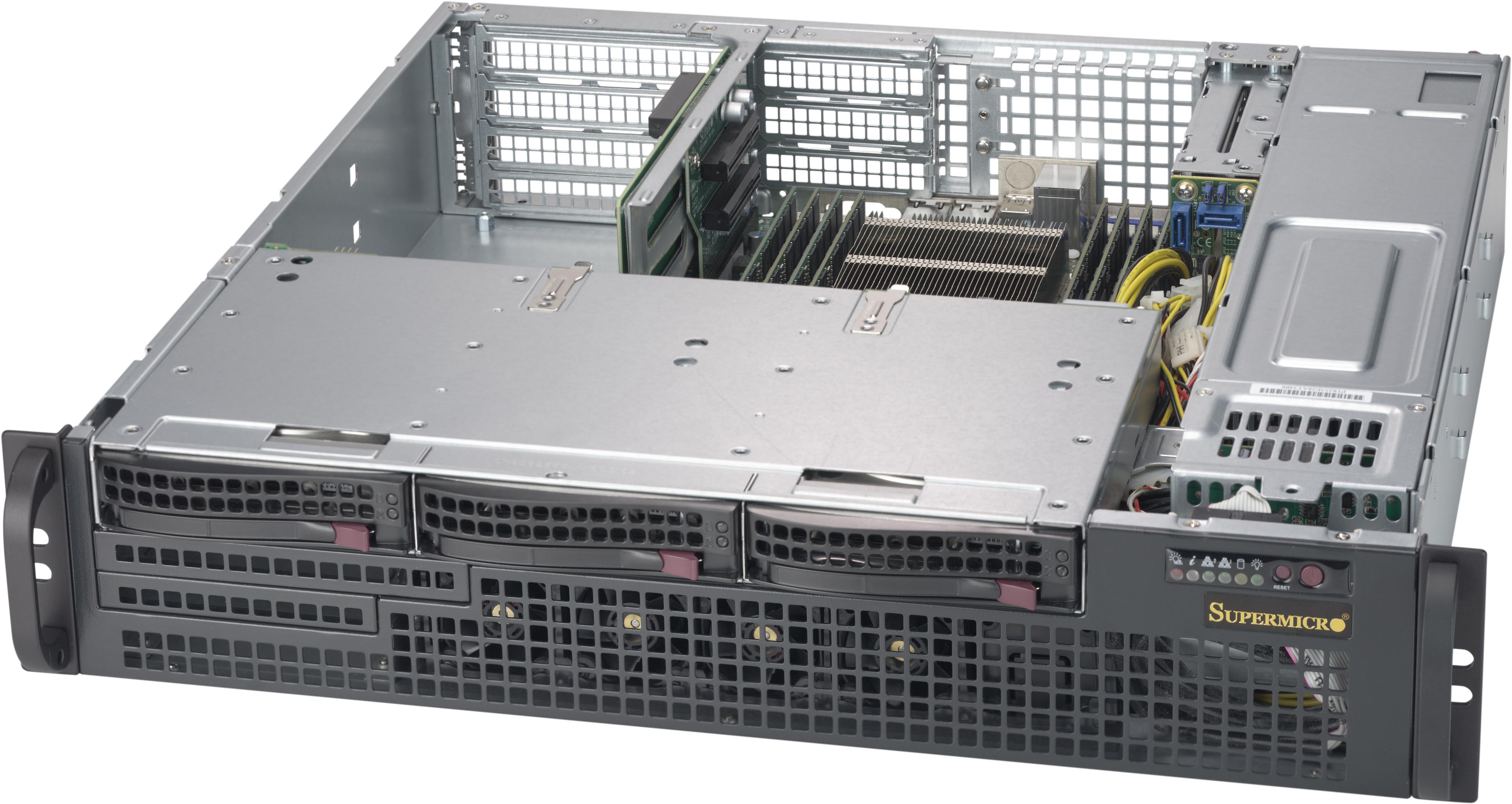

Supermicro CSE-825MBTQC-R802WB

Supermicro CSE-825MBTQC-R802WB

2U chassis supports for maximum motherboard sizes - SMC Proprietary WIO, 12.8" x 13.4" motherboards 3 x 3.5" hot-swap SAS/SATA drive bay with SGPIO, optional 2 x 2.5" hot-swap SAS/SATA drive bay w/ full SES-II support on SAS motherboards

We also offer six months of free collocation in our TIER III data center.

Components are not the end — ask us for a custom server configuration. We will design the server, assemble it, expertly set it up, and provide extended or NBD warranty.

Product code 202.348467
Part number CSE-825MBTQC-R802WB
EAN 672042291601
Manufacturer Supermicro
Availability
In stock 0 pc
Stock allocation and delivery options
Delivery across USA
Wednesday 8. 5. at the latest Wednesday 8. 5.
Supplier availability In stock 1 pc
Warranty 24 months
Weight 17.42 kg
The price includes all legal fees
$ 672.72
pc
Add to compare list
  1. Parameters

Detailed information

Key Features

  1. 2U chassis supports for maximum motherboard sizes - SMC Proprietary WIO, 12.8" x 13.4" motherboards
  2. 3 x 3.5" hot-swap SAS/SATA drive bay with SGPIO, optional 2 x 2.5" hot-swap SAS/SATA drive bay w/ full SES-II support on SAS motherboards
  3. 3-port SC825M SAS3 12Gbps TQ backplane, support up to 3x 3.5-inch SAS3/SATA3 HDD/SSD
  4. 1U 800W Redundant Power Supply 76mm width, W/PMbus, Titanium
  5. 4 full height expansion slot(s) (Riser Card Required), 3 low-profile expansion slot(s) (Riser Card Required)
  6. 4 x 4cm high-performance counter-rotating PWM fan(s) with optimal fan(s) speed control
  7. Optional 1 x 4cm high-performance counter-rotating PWM fan(s) with optimal fan(s) speed control



Product SKUs
CSE-825MBTQC-R802WB
  • SuperChassis 825MBTQC-R802WB

Form Factor
  • 2U chassis supports for maximum motherboard sizes - SMC Proprietary WIO, 12.8" x 13.4" motherboards

Processor Support
  • Dual and Single Intel® and AMD processors

Dimensions
Height
  • 3.5" (89 mm)
Width
  • 17.2" (437 mm)
Depth
  • 17.7" (450 mm)
Gross Weight
  • 42 lbs (19.05 kg)
Packaging (W x H x L)
  • 23.4" (594 mm) x 9.9" (251 mm) x 32.5" (826 mm)
Available Color
  • Black

Expansion Slots
  • 4 full height expansion slot(s) (Riser Card Required)
  • 3 low-profile expansion slot(s) (Riser Card Required)

Drive Bays
  • 3 x 3.5" hot-swap SAS/SATA drive bay with SGPIO
  • Optional 2 x 2.5" hot-swap SAS/SATA drive bay w/ full SES-II support on SAS motherboards

Backplane
  • 3-port SC825M SAS3 12Gbps TQ backplane, support up to 3x 3.5-inch SAS3/SATA3 HDD/SSD

Peripheral Drives
  • Optional 1 x slim DVD-ROM drive bay
  • Optional 2 x USB 2.0 ports
  • Optional 1 x COM port tray

Front Panel
Buttons
  • Power On/Off button
  • System Reset Button
LEDs
  • 2 Network Activity LEDs
  • HDD activity LED
  • Power Status LED
  • Power Fail LED
  • System Information LED
Systems Cooling
Fans
  • 4 x 4cm high-performance counter-rotating PWM fan(s) with optimal fan(s) speed control
  • Optional 1 x 4cm high-performance counter-rotating PWM fan(s) with optimal fan(s) speed control

Operating Environment (System)
Operating Temperature Range
  • 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
  • 5% - 95% (non-condensing)

Power Supply
1U 800W Redundant Power Supply 76mm width, W/PMbus, Titanium
Power Efficiency
  • 96%
Total Output Power and Input
  • 800W with Input 100 - 240Vac
  • 800W with Input 200 - 240Vdc
AC Input Frequency
  • 50-60Hz
Dimensions (L x W x H)
  • 336 x 76 x 40 mm
Output Type
  • Backplanes (gold finger)
+12V
  • Max: 66A (100Vac - 240Vac)
  • Max: 66A (200 - 240)
+5Vsb
  • Max: 4A / Min: 0A
Power Distributor
  • PDB-PT825-S8824
  • O/P: 12V/75A
  • +5V Max: 30A
  • +3.3V Max: 24A
  • -12V Max: 0.6A
Certification
  • Titanium Certified  Titanium Certified

Regulatory (Power Supply)
Power Supply Safety / EMC
  • BSMI
  • CCC
  • CE/EMC
  • FCC class A
  • TUV/CB
  • UL/CUL
Standard Parts List
  Part Number Qty Description
Air Shroud MCP-310-29019-0N 1 SC823M Intel DP X10 Universal Mylar Air Shroud, 12x13MB
HD Backplane BPN-SAS3-825MTQ-P 1 3-port SC825M SAS3 12Gbps TQ backplane, support up to 3x 3.5-inch SAS3/SATA3 HDD/SSD
Cable(S) CBL-0071L 1 CBL,FRONT CNTL,16 TO 16 PIN,RA,RND TUBE,75CM,28AWG
Cable(S) CBL-0160L 2 NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt)
CD-ROM & Accessory MCP-290-00041-0B 1 Black DVD dummy cover for SC825M
Fan(s) FAN-0156L4 4 40x40x56 mm 13K-11K RPM Counter-rotating Fan,RoHS/REACH
Front Panel FPB-FP836-D 1 Front control board Dual color LED(FP836-D)forSC823M,825,825M,828,829,835,836
Cooling Fan & Accessory MCP-320-82502-0B 1 Fan Tray for Five 4056 Fans, for 825M
Cooling Fan & Accessory MCP-340-00035-0B 1 Dummy fan 40x56mm for 40x56 counter-rotating fan (cost-effective)
Drive Tray(s) MCP-220-00075-0B 3 Black gen 5.5 hot-swap 3.5"; HDD tray
Drive Tray(s) MCP-220-82501-0N 1 HDD cage housing 3 trays for SC825M
Power Distributor PDB-PT825-S8824 1 SC825 24PIN REDUNDANT PWR DISTRIBUTOR W/ SHORT CBL
Power Supply & Accessory PWS-802A-1R 2 1U 800W 100-240Vac/47-63Hz, and DC240 input
Mounting Rail(s) MCP-290-00053-0N 1 Rail set, quick/quick, default for 2,3U 17.2";W
Rear Window MCP-240-82609-0N 1 SC826B, 216B WIO rear window

Parameters

Depth (mm) 450
2.5" Drive bays 0
3.5" Drive bays 3
HDD disks
NVMe slots
Efficiency certification Titanium
Size in U 2
Power (W) 800
