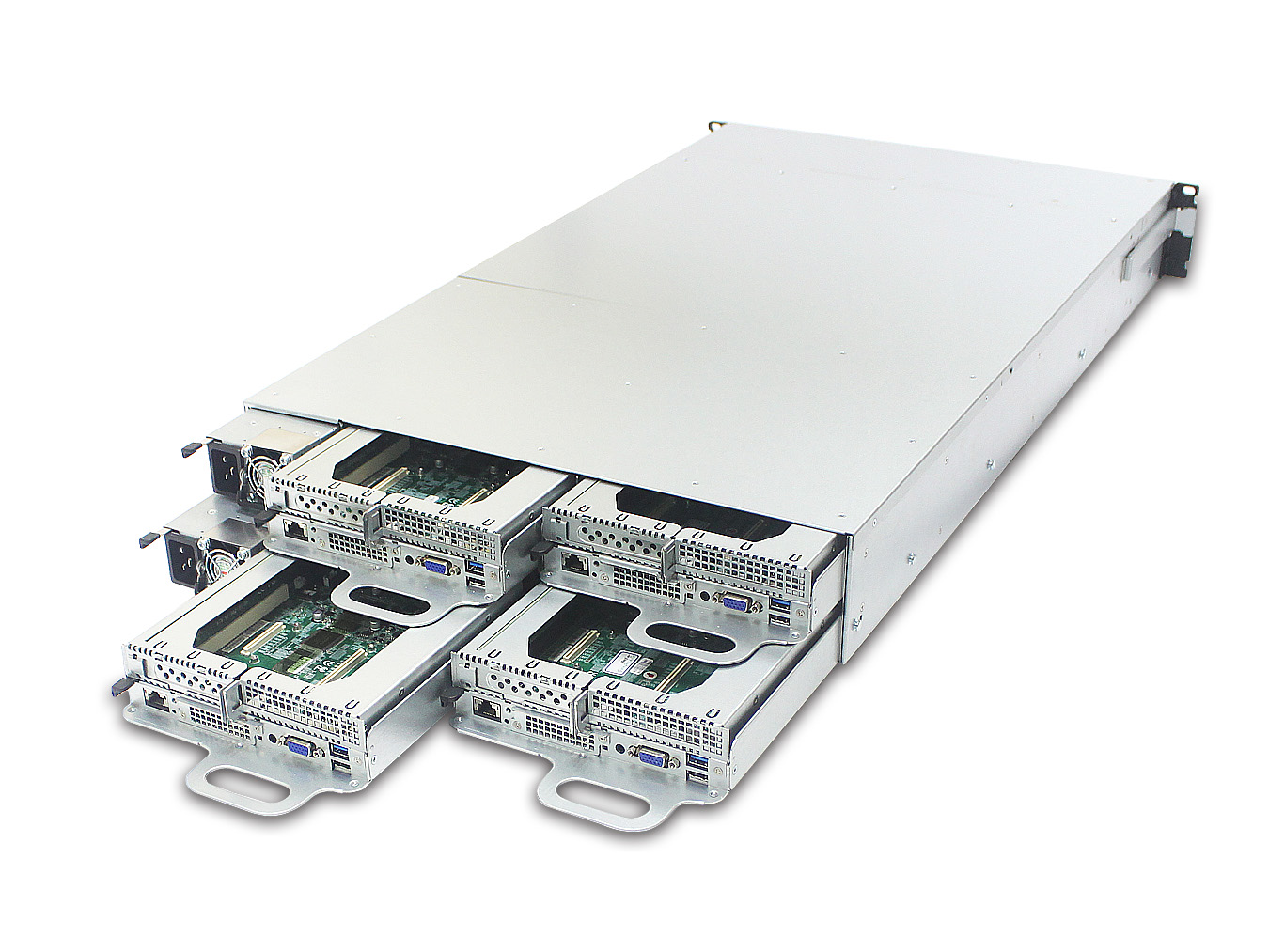

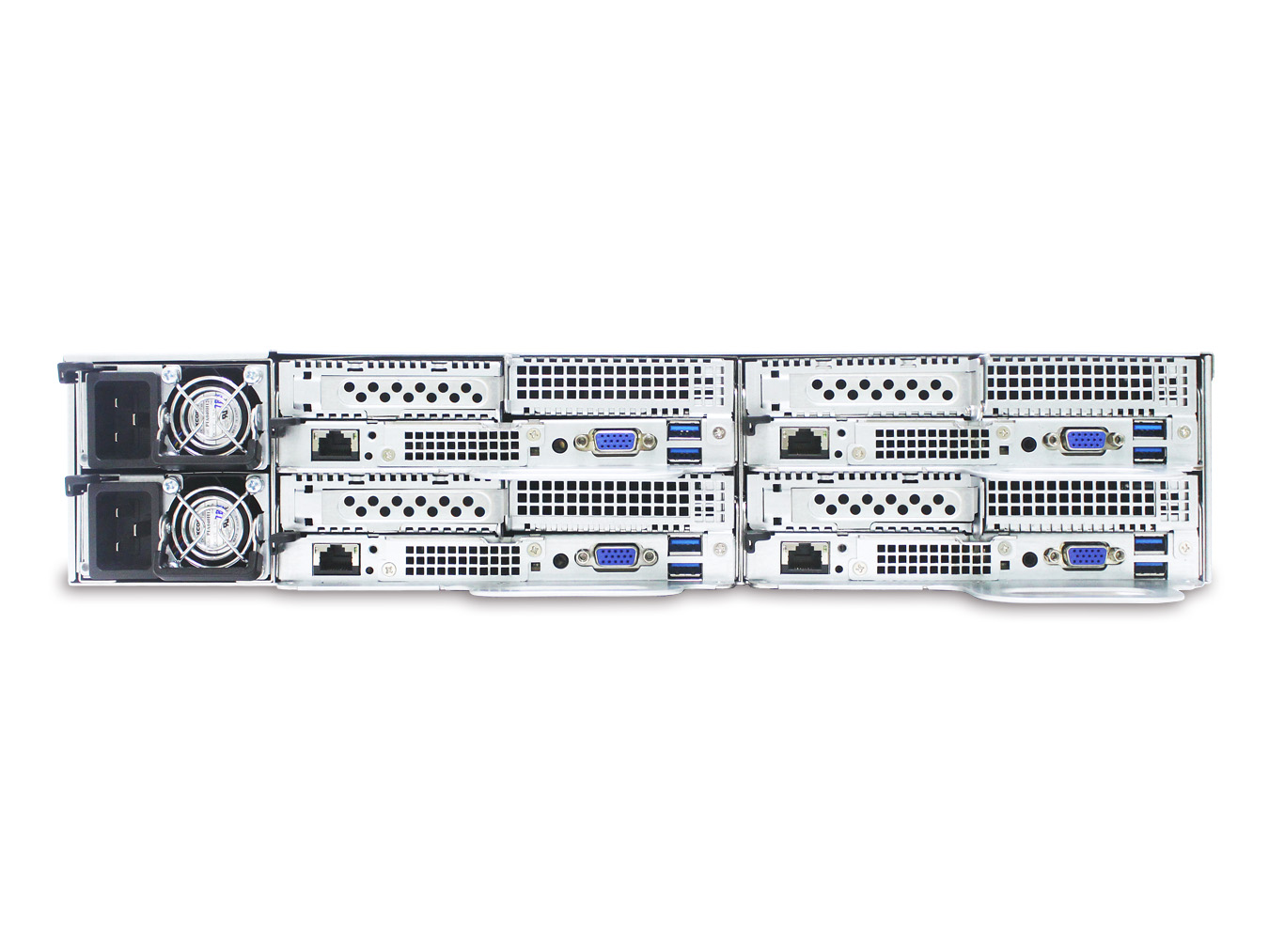

AIC HP201-AG - XP1-P201AG03
24x 2.5” tray, 24x 2.5” HDD backplane, internal 8x 2.5" OS kit/ cables, 4x System Fan 6056, 1x System Fan 6038, 1600W 1+1 redundant 80+ Platinum, 4x Auriga, 8x PCIe card riser, 4x BP connection riser (SATA/NVMe), 4x Power connection riser, 4x Socket SP3 EPYC heatsink, 4x Slimline cables (SATA), 16x Slimline cables (NVMe), slide rail, w/o bezel, with OS kit
We also offer six months of free collocation in our TIER III data center.
| Product code | 202.178897 |
|---|---|
| Part number | XP1-P201AG03 |
| Manufacturer | AIC |
| Availability | On demand |
| Warranty | 36 months |
| Weight | 36 kg |
Server system integrator & worldwide shipping
Personal approach and tailor-made servers
NBD warranties & cross-shipping
Private cloud infrastructure
Pre-sales & After-sales support
Detailed information
AIC Servers
AIC's offers heavy-duty EMI-RFI-resistant industrial computer enclosures. Their scalable and cost-effective enclosure solutions encompass server and storage enclosures in a variety of form factors and specifications. AIC enclosures are designed to support the latest technology platforms in the market today, ensuring maximum compatibility with products from other component vendors.
Invest in Certainty
AIC, with over 30 years of experience, offers unmatched flexibility and scalability in the market. Its wide range of products allows maximum customization according to individual customer needs. With the trust the company places in its solutions, it provides extended warranties on its products for 5 years and more. The combination of efficient and modern design positions AIC at the forefront of the market, enabling it to quickly gain recognition in the mainstream.
- Motherboard
Model Auriga Dimensions 17" x 6.2" Socket SP3 QTY Socket 1 QTY MB 4 - Processor
Processor Support AMD EPYC™ 7003/7002/7001 Max. TDP 280 W - System memory
Memory maximum Capacity 8 TB Memory Slots 32x DIMM Memory Type DDR4 3200/2933MHz RDIMM/LRDIMM - Input/output
Network 4x RJ45 for dedicated BMC management USB 8x USB 3.0 Video 4x DB-15 VGA - Bios
BIOS type EPYC 7003/7002/7001 – UEFI BIOS Features ACPI
PXE
IPMI KCS interface
SMBIOS
SRIOV
Serial console redirection
iSCSI
TPM
PCIe hotplug
- Expansion slots
PCIe 3.0/4.0 8x slots x16 (LP) OCP 4x 16 OCP Mezzanine V2.0 (16 Lanes of PCIe Gen4/Gen3) - Dimensions
Form Factor 2U Height 87.5 mm Width 438 mm Depth 780 mm Weight 36 kg - Storage
Drive Bays (External) 24x 2.5" Hot-Swap NVMe/SAS/SATA Drive Bays (Internal) 8x 2.5" Hot-Swap SATA M.2 2x M-Key / 2280 / PCIe Gen.3 x 2 or SATA Backplane Yes - Power supply
Certification Platinum Power 1600 W QTY 1+1 redundant - Cooling
Fans 4x 60x56mm easy swap fans
1x 60x38mm easy swap fan
Parameters
| Size in U | 2 |
|---|---|
| Depth (mm) | 780 |
| CPU manufacturer | AMD |
| Socket | SP3 |
| HDD disks | 40 |
| 2.5" Drive bays | 32 |
| 3.5" Drive bays | 0 |
| NVMe slots | 24 |
| Total amount of PCIe | 8 |
| OCP/AIOM | 1 |
| Power (W) | 1600 |
| Efficiency certification | Platinum |
