Synology RS2423+
The RS2423+/RS2423RP+ offer exceptional performance with over 155K/79K random read/write IOPS and up to 3,500/1,700 MB/s sequential read/write throughput.1 They are the perfect cost-effective file management and sharing solution for SMBs and come equipped with advanced backup capabilities designed for businesses with expanding data needs.
| Product code | 244.169472 |
|---|---|
| Part number | RS2423+ |
| EAN | 4711174724895 |
| Manufacturer | Synology |
| Availability |
In stock 0 pc
Stock allocation and delivery options
Delivery to selected address Wednesday 11. 6. at the latest Friday 20. 6. |
| Supplier availability | In stock 10 pc |
| Warranty | 36 months |
| Weight | 11.5 kg |
Server system integrator & worldwide shipping
Personal approach and tailor-made servers
NBD warranties & cross-shipping
Private cloud infrastructure
Pre-sales & After-sales support
Detailed information
Secure storage for your business
-
Business-ready
Over 3,500/1,700 MB/s seq. read/write, built-in 10GbE, and up to 216 TB raw storage before expansion.
-
Flexible configuration
Add 12 extra drive bays, 1/10/25GbE ports, and SSD cache volumes whenever needed.
-
Versatile applications
Back up 300 endpoints, manage 50 IP cameras, or safely sync and share files between devices and sites.
Designed for reliability

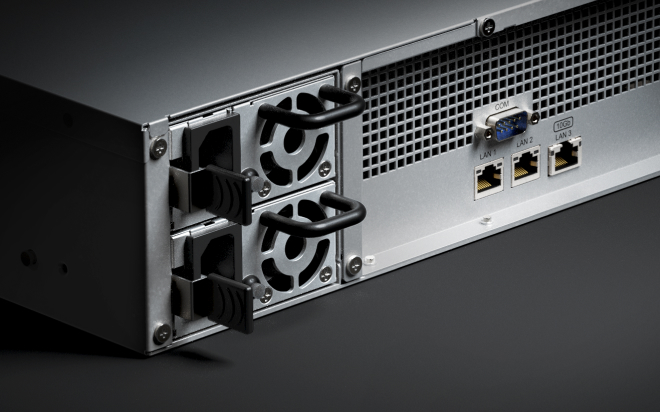

The RS2423+ and RS2423RP+ come with one 10GbE RJ-45 port and two Gigabit RJ-45 ports, which can be bonded with Link Aggregation to enable automatic network failover and load balancing. Two RS2423+/RS2423RP+ units can be paired using Synology High Availability to form a reliable active-passive server cluster, maximizing service uptime.
Room for expansion
Easily adjust the 2U 12-bay RS2423+/RS2423RP+ to match the usage of your environment, whether it needs performance, faster networking, or higher storage capacity.
Storage expansion
Add 12 extra drive bays for a total of 24 drive bays with a RX1223RP expansion unit.
SSD cache
Boost read/write IOPS for HDD arrays with NVMe or SATA SSD cache.
Flexible networking options
Improve I/O or add redundancy with 10/25GbE SFP+/SFP28 or RJ-45 networking.
-
- Processor
CPU AMD Ryzen V1780B Socket FP5 TDP 45W - System memory
Memory maximum Capacity 32 GB Memory Slots 4 DIMM slots Memory Type DDR4 ECC UDIMM Error Detection (ECC) Yes installed system memory 8 GB - Storage
Drive Bays 12 Compatible Drive Type 3.5" SATA HDD
2.5" SATA SSD- Input/output
Network 1 x 10GbE RJ-45
2 x RJ-45 1GbE LAN PortUSB 2 x USB 3.2 Gen 1 Port
-
- Expansion slots
PCIe 2 x Gen3 x8 slots (x8 link) - Dimensions
Form Factor 2U Height 88 mm Width 482 mm Depth 552 mm Weight 11,5 kg - Power supply
Power 500 W QTY 1
Parameters
| Size in U | 2 |
|---|---|
| Number of disks | 12 |
| CPU manufacturer | AMD |
| Socket | SoC AMD |
| Core count | 4 |
| Memory generation | DDR4 |
| Max DIMM slots for memory | 4 |
| Total amount of PCIe | 2 |
| Number of power supplies | 1 |
