Synology Expansion Unit RXD1219sas
Expansion box for Synology UC3200 NAS. Rack 2U design. Redundant power supply. Connection via Dual SAS interface.
| Product code | 244.166300 |
|---|---|
| Part number | RXD1219SAS |
| EAN | 4711174723225 |
| Manufacturer | Synology |
| Availability |
In stock 0 pc
Stock allocation and delivery options
Delivery to selected address Tuesday 17. 6. at the latest Thursday 26. 6. |
| Supplier availability | In stock 3 pc |
| Warranty | 60 months |
| Weight | 33.9 kg |
Server system integrator & worldwide shipping
Personal approach and tailor-made servers
NBD warranties & cross-shipping
Private cloud infrastructure
Pre-sales & After-sales support
Detailed information
On-the-fly SAS expansion up to 12 additional bays
RXD1219sas is a 2U expansion unit designed to work automatically when connected, providing an effortless storage space upgrade solution for your Synology servers1. You can add up to 12 additional 2.5" / 3.5" SAS drive bays on the fly when connected directly with a mini-SAS HD cable.
Designed for maximum reliability

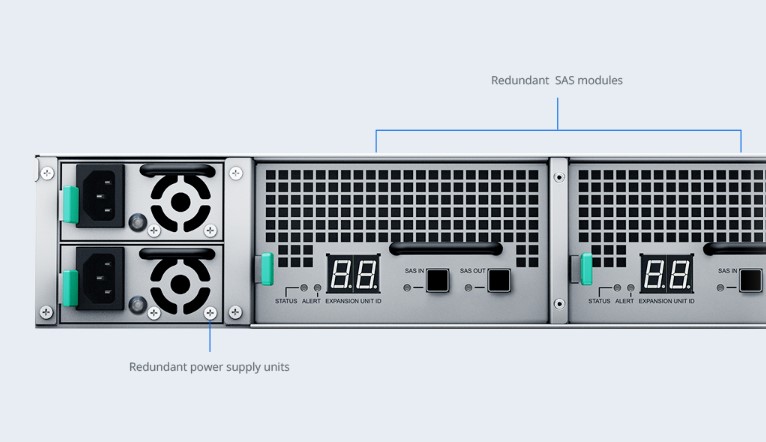

The redundant power supplies ensure maximum service uptime. On the rare occasion when a failure occurs, you can instantly replace the hot-swappable drive trays, and with the key system components modularized, SAS modules and system fans can also be replaced with ease.
-
- Applied Models
Supports creating volumes across different units SA3200D Supports creating volumes on a single unit only UC3200 - Storage
Drive Bays 12 Compatible Drive Type 2.5” dual-port SAS SSD
2.5” dual-port SAS HDD
3.5” dual-port SAS HDD
-
- Dimensions
Form Factor U2 Height 88 mm Width 430,5 mm Depth 692 mm Weight 18.2 kg - Power supply
Power 500 W QTY 1
Parameters
| Size in U | 2 |
|---|---|
| Number of disks | 12 |
| CPU manufacturer | None |
| Socket | None |
| Core count | 0 |
| Memory generation | None |
| Max DIMM slots for memory | 0 |
| Total amount of PCIe | 0 |
| Number of power supplies | 1 |
