Accelerating Artificial Intelligence and Leading Efficiency

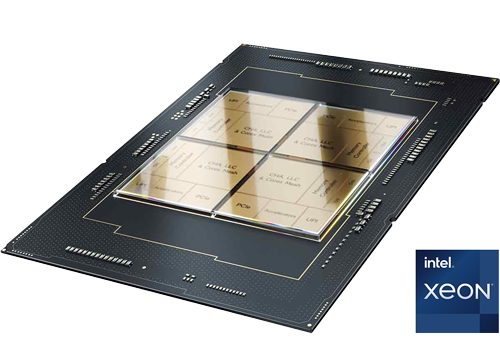

Engineering richer features in a revolutionary platform, Intel has made an incredible jump in processor performance in the business transformation journey. AI and deep learning performance will benefit from the built-in AI acceleration engines, while networking, storage, and analytics leverage other specialized accelerators in the 4th & 5th Gen Intel Xeon Scalable processors. Adding a host of new features to target a wide range of workloads, the new families of Intel Xeon processors will deliver even better CPU performance and performance per watt, and do so on a PCIe 5.0 platform with 2x the prior gen throughput to greatly speed up data movement to and from GPUs and storage. Intel also created the Intel Xeon CPU Max Series with High Bandwidth Memory (HBM) for improvements in memory bound HPC and AI workloads. For this new platform, GIGABYTE has products ready to get the most out of Intel Xeon CPU-based systems that support fast PCIe Gen5 accelerators and Gen5 NVMe drives, in addition to support for high performant DDR5 memory.
GIGABYTE S183-SH0 (rev. AAV1) - 6NS183SH0DR000AAV1
4th Gen Intel® Xeon® Scalable Processors Intel® Xeon® CPU Max Series Dual processor, LGA 4677 8-Channel RDIMM DDR5 per processor, 32 x DIMMs Dual ROM Architecture 2 x 1Gb/s LAN ports (Intel® I350-AM2) 1 x Dedicated management port 32 x E1.S Gen5 NVMe hot-swappable bays 2 x M.2 slots with PCIe Gen3 x4 or SATA 3.0 interface
We also offer six months of free collocation in our TIER III data center.
Components are not the end — ask us for a custom server configuration. We will design the server, assemble it, expertly set it up, and provide extended or NBD warranty.
| Product code | 202.165871 |
|---|---|
| Part number | 6NS183SH0DR000AAV1 |
| Manufacturer | GIGABYTE |
| Availability | ETA 3 weeks |
| Warranty | 24 months |
| Weight | 20 kg |
Server system integrator & worldwide shipping
Personal approach and tailor-made servers
NBD warranties & cross-shipping
Private cloud infrastructure
Pre-sales & After-sales support
Detailed information
Power Efficiency
GIGABYTE servers are enabled with Automatic Fan Speed Control to achieve the best cooling and power efficiency. Individual fan speeds will be automatically adjusted according to temperature sensors strategically placed in the servers.
High Availability
To prevent server downtime and data loss as a result of loss of AC power, GIGABYTE implements SmaRT in all our server platforms. When such an event occurs, the system will throttle while maintaining availability and reducing power load. Capacitors within the power supply can supply power for 10-20ms, which is enough time to transition to a backup power source for continued operation.
Hardware Security
For hardware-based authentication, the passwords, encryption keys, and digital certificates are stored in a TPM module to prevent unwanted users from gaining access to your data. GIGABYTE TPM modules come in either a Serial Peripheral Interface or Low Pin Count bus.
Performance
Up to 16 cores and 32 threads, the AMD Ryzen CPU can reach its potential in GIGABYTE platforms, including support for a dual-slot GPU.
Cost-effective
Providing many choices of compelling compute servers allows for customers to buy the features that they need and do so at an optimal price.
Ease of Administration
GIGABYTE servers come with GIGABYTE Management Console for IPMI management. Using a web based browser remotely is key to simplifying management.
Continuous Operation
Systems are rigorously designed and tested to ensure downtime will not occur. Customers have come to expect stable performance around the clock.
Energy Efficiency
Our engineers have baked in features to achieve higher efficiency by customizing fan curves and by the choice of PSU -Titanium or Platinum.
-
- Motherboard
Part number MSH3-ES0
- Processor
CPU 4th/5th Generation Intel® Xeon® Scalable Processors
Socket 2 x LGA 4677 TDP up to 350W - System memory
Memory maximum Capacity RDIMM up to 96GB supported
3DS RDIMM up to 256GB supportedMemory Slots 32 x DIMM slots Memory Type DDR5 Error Detection (ECC) Yes - Input/output
Network 2 x 1Gb/s LAN ports (1 x Intel® I350-AM2)
Support NCSI functionUSB 3 x USB 3.2 Video Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp- Expansion slots
PCIe 3 x PCIe x16 (Gen5 x16)
-
- Dimensions
Form Factor 1U Height 43.5 mm Width 438 mm Depth 730 mm - Storage
Drive Bays 32 x 9.5mm E1.S NVMe hot-swappable bays M.2 2 x M.2 slot (CMTP0C1):
- M-key
- PCIe Gen3 x4 or SATA, from PCH
- Supports 2280/22110 cards- Power supply
Certification Titanium Power Dual 1600W Redundant Yes QTY 2 - Cooling
Fans 7 x 40x40x56mm (32,000rpm)
- Optional parts
| Name | QTY | Part Number | |
|---|---|---|---|
| Rail | 3-Section Rail kit | 1 | 25HB2-AA6105-K0R |
| Cables | Cable Management Arm | 1 | 25HBZ-R18100-K0R |
Parameters
| Size in U | 1 |
|---|---|
| Depth (mm) | 730 |
| CPU manufacturer | Intel |
| Socket | 4677 |
| HDD disks | 32 |
| 2.5" Drive bays | 0 |
| 3.5" Drive bays | 0 |
| NVMe slots | 32 |
| Total amount of PCIe | 5 |
| OCP/AIOM | 1 |
| Power (W) | 1600 |
| Efficiency certification | Platinum |
