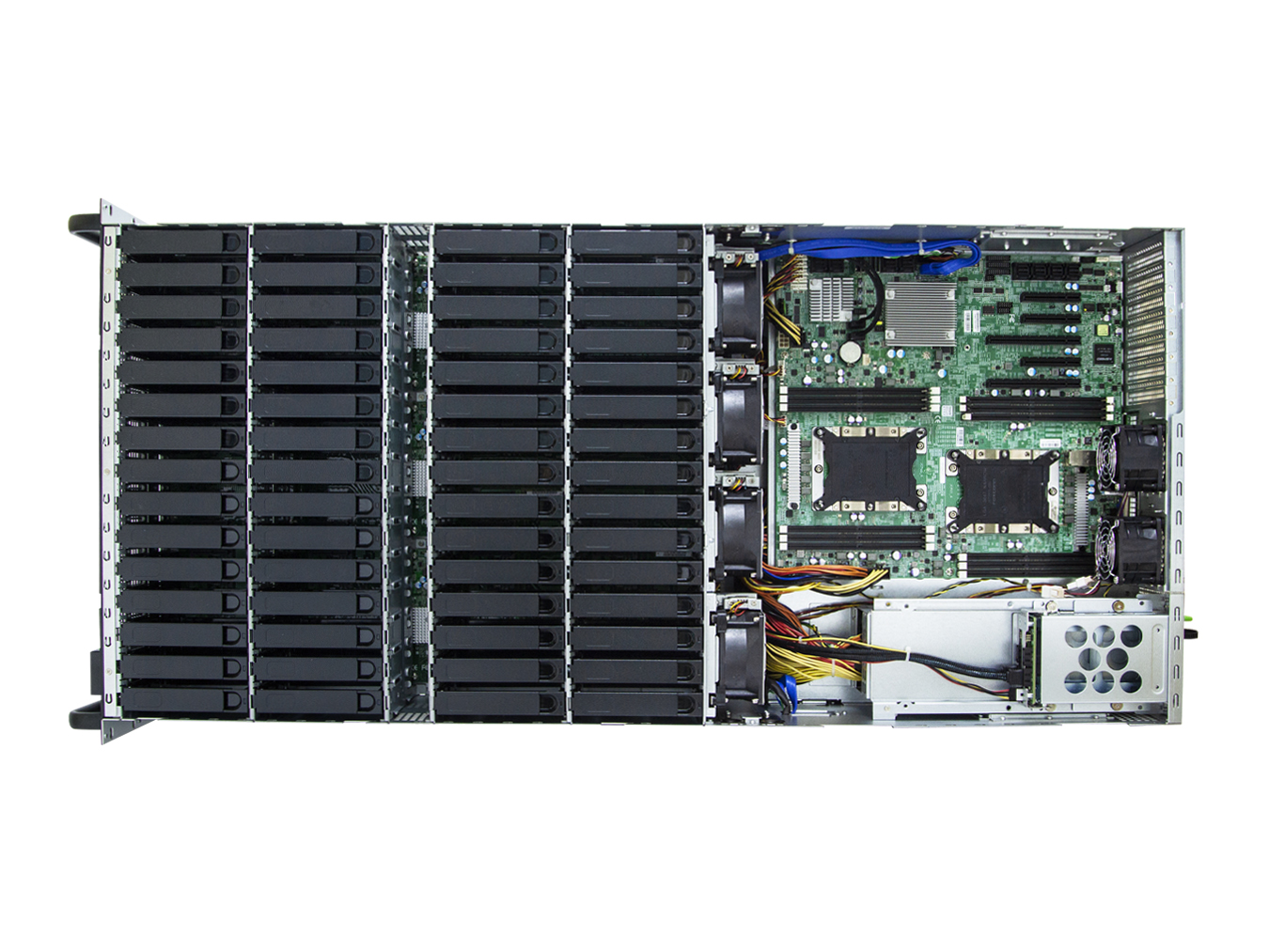

AIC SB403-VG - XP1-S403VG04
4U 60-bay storage server, 3x 20-port 12G EOB backplane, 2U Acbel 1600W Platinum redundant power supply (200V~240V), Virgo motherboard, Intel Purley, 2x 7mm internal, 2x 2.5" hot-swap OS, ATX PWR, DDR4 RDIMM x12, Intel PCH C622, 2x 10G SFP+, SAS3008 IOC, EATX, 2x CPU heatsink, 37" slide rail, w/o bezel
We also offer six months of free collocation in our TIER III data center.
| Product code | 202.178849 |
|---|---|
| Part number | XP1-S403VG04 |
| Manufacturer | AIC |
| Availability | On demand |
| Warranty | 36 months |
| Weight | 47 kg |
Server system integrator & worldwide shipping
Personal approach and tailor-made servers
NBD warranties & cross-shipping
Private cloud infrastructure
Pre-sales & After-sales support
Detailed information
AIC Servers
AIC's offers heavy-duty EMI-RFI-resistant industrial computer enclosures. Their scalable and cost-effective enclosure solutions encompass server and storage enclosures in a variety of form factors and specifications. AIC enclosures are designed to support the latest technology platforms in the market today, ensuring maximum compatibility with products from other component vendors.
Invest in Certainty
AIC, with over 30 years of experience, offers unmatched flexibility and scalability in the market. Its wide range of products allows maximum customization according to individual customer needs. With the trust the company places in its solutions, it provides extended warranties on its products for 5 years and more. The combination of efficient and modern design positions AIC at the forefront of the market, enabling it to quickly gain recognition in the mainstream.
- Motherboard
Model Virgo Socket LGA-3647 QTY socket 2 Chipset Intel® C620 Dimensions 12" x 13" QTY MB 1 - Processor
Support Intel® Xeon® Scalable Processors
(Cascade Lake Refresh/Cascade Lake/Skylake)Max. TDP 165 W - System memory
Memory maximum Capacity 1536GB LRDIMM 3DS 8Rx4 Memory Slots 12x DIMM Memory Type DDR4 2933/2666/2400MHz RDIMM/LRDIMM - Input/output
Network 2x 10GbE SFP+
1x 10/100M RJ45 dedicated to BMC managementUSB 2 x USB 3.0 Type A Video 1x external DB-15 VGA port Serial port 1x external DB-9 COM port - Bios
BIOS type Insyde UEFI BIOS Features ACPI
PXE
WOL
AC loss recovery
IPMI KCS interface
SMBIOS
Serial console
redirection
BIOS Boot
Specification
BIOS Recovery
Mode
SRIOV
iSCSI
TPM
PCIe Hotplug
- Expansion slots
PCIe 3.0 x16 slots (FHHL) 2x PCIe 3.0 x16 slots (FHHL) 3x - Dimensions
Form Factor 4U Height 175.7 mm Width 435 mm Depth 953 mm - Storage
Drive Bays (Top Load) 60x 3.5" SATA/SAS Hot-Swap Drive Bays (Rear) 2x 2.5" SATA Hot-Swap M.2 1x M-Key (2280, 2242 by
additional bracket) supports SATA/PCIe x4Backplane 3x 20-port 12G SAS backplanes with 28-PHY expander - Power supply
Certification Platinum Power 1600 W QTY 1+1 (redundant) - Cooling
Middle 4x 80x38mm hot swap fans Rear 2x 60x38mm easy swap fan
Parameters
| Size in U | 4 |
|---|---|
| Depth (mm) | 953 |
| CPU manufacturer | Intel |
| Socket | 3647 |
| HDD disks | 64 |
| 2.5" Drive bays | 2 |
| 3.5" Drive bays | 60 |
| NVMe slots | 0 |
| Total amount of PCIe | 5 |
| OCP/AIOM | 0 |
| Power (W) | 1600 |
| Efficiency certification | Platinum |
