AIC RSC-4H1 - XE1-4H002-01

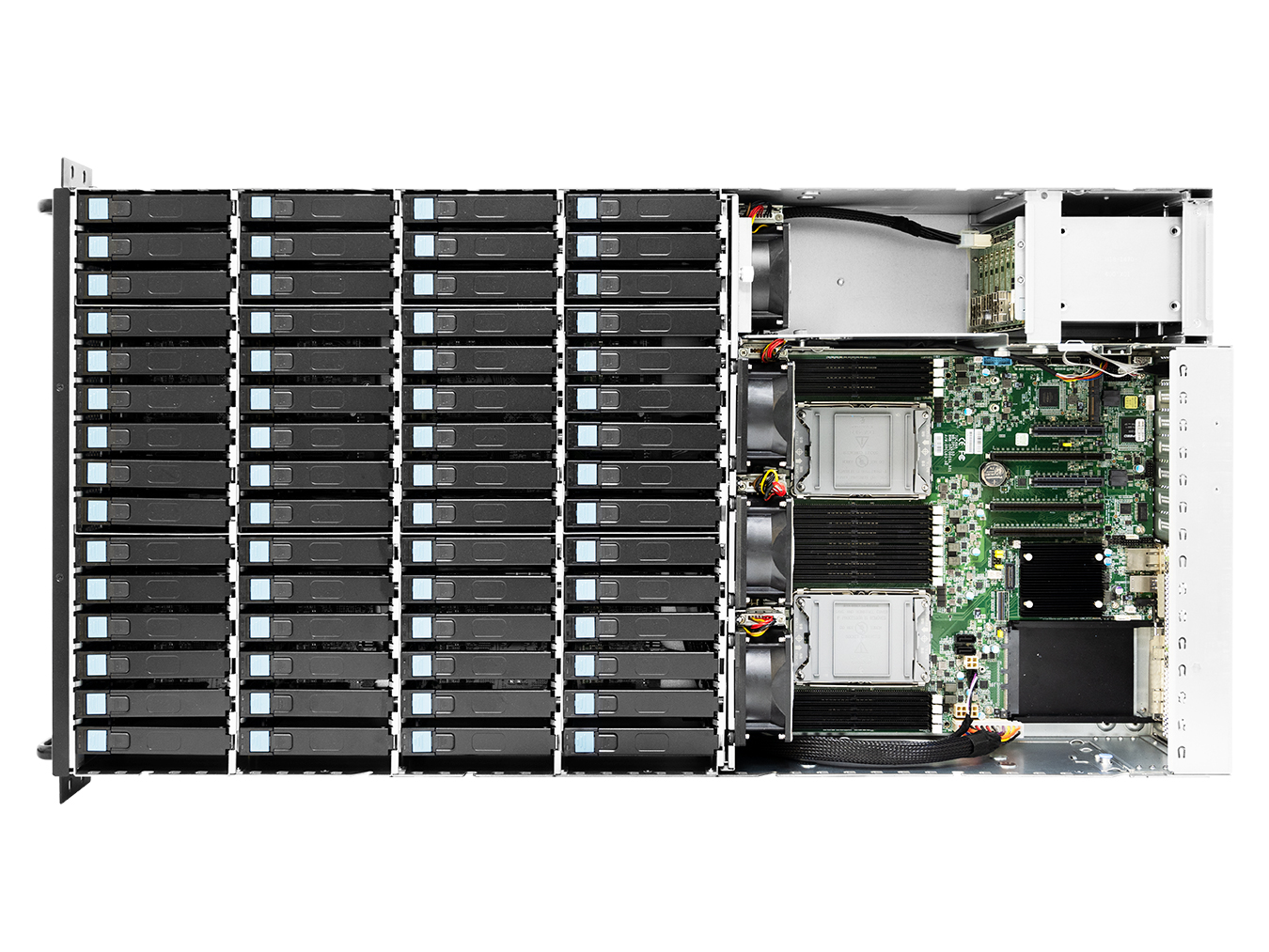

4U 60x 3.5" internal hot-swap bays, tool-less 3.5" and 2.5" HDD tray, 2x 2.5" SATA hot-swap OS (with SATA cable x 2), 800W 2+2 redundant power supply, 2x 30-port SAS 12G expander controller on backplane (35X series), 37" slide rail (for 1M and over 1M rack or post to post 671~940mm rack), pallet
We also offer six months of free collocation in our TIER III data center.
| Product code | 202.179634 |
|---|---|
| Part number | XE1-4H002-01 |
| Manufacturer | AIC |
| Availability | On demand |
| Warranty | 36 months |
| Weight | 43 kg |
Server system integrator & worldwide shipping
Personal approach and tailor-made servers
NBD warranties & cross-shipping
Private cloud infrastructure
Pre-sales & After-sales support
Detailed information
AIC Servers
AIC's offers heavy-duty EMI-RFI-resistant industrial computer enclosures. Their scalable and cost-effective enclosure solutions encompass server and storage enclosures in a variety of form factors and specifications. AIC enclosures are designed to support the latest technology platforms in the market today, ensuring maximum compatibility with products from other component vendors.
Invest in Certainty
AIC, with over 30 years of experience, offers unmatched flexibility and scalability in the market. Its wide range of products allows maximum customization according to individual customer needs. With the trust the company places in its solutions, it provides extended warranties on its products for 5 years and more. The combination of efficient and modern design positions AIC at the forefront of the market, enabling it to quickly gain recognition in the mainstream.
-
- Specifications
Dimensions (W x D x H) 434 x 853 x 176 [mm] Industry Standard EIA-RS310D Material Heavy-duty preplated SGCC cold-rolled steel Color (Front Panel) Black Cooling Middle: 4x 80x38mm hot swap fans Power Supply 800W 2+2 redundant Expansion Slots 7x FH Front Panel System power on/off, System reset LED Indicators Power, ID, Drive System Board 12” x 13” (E-ATX/SSI EEB 3.6 compliant MB) Drive Bays 60x 3.5" SAS Hot-Swap (Internal)
2x 2.5" SATA Hot-Swap OSBackplane 2x 30-port SAS 12G expander controller on backplane (35X series)
Storage Temperature 0 ºC ~ 50 ºC Humidity 5%~95% non-condensing Gross Weight 45 kg Mounting (Standard) 37” tool-less slide rail
Parameters
| Size in U | 4 |
|---|---|
| Depth (mm) | 853 |
| CPU manufacturer | None |
| Socket | None |
| HDD disks | 62 |
| 2.5" Drive bays | 2 |
| 3.5" Drive bays | 60 |
| NVMe slots | 0 |
| Total amount of PCIe | 0 |
| OCP/AIOM | 0 |
| Power (W) | 800 |
| Efficiency certification | Platinum |
