AIC J4078-01-35X - XJ1-40781-02

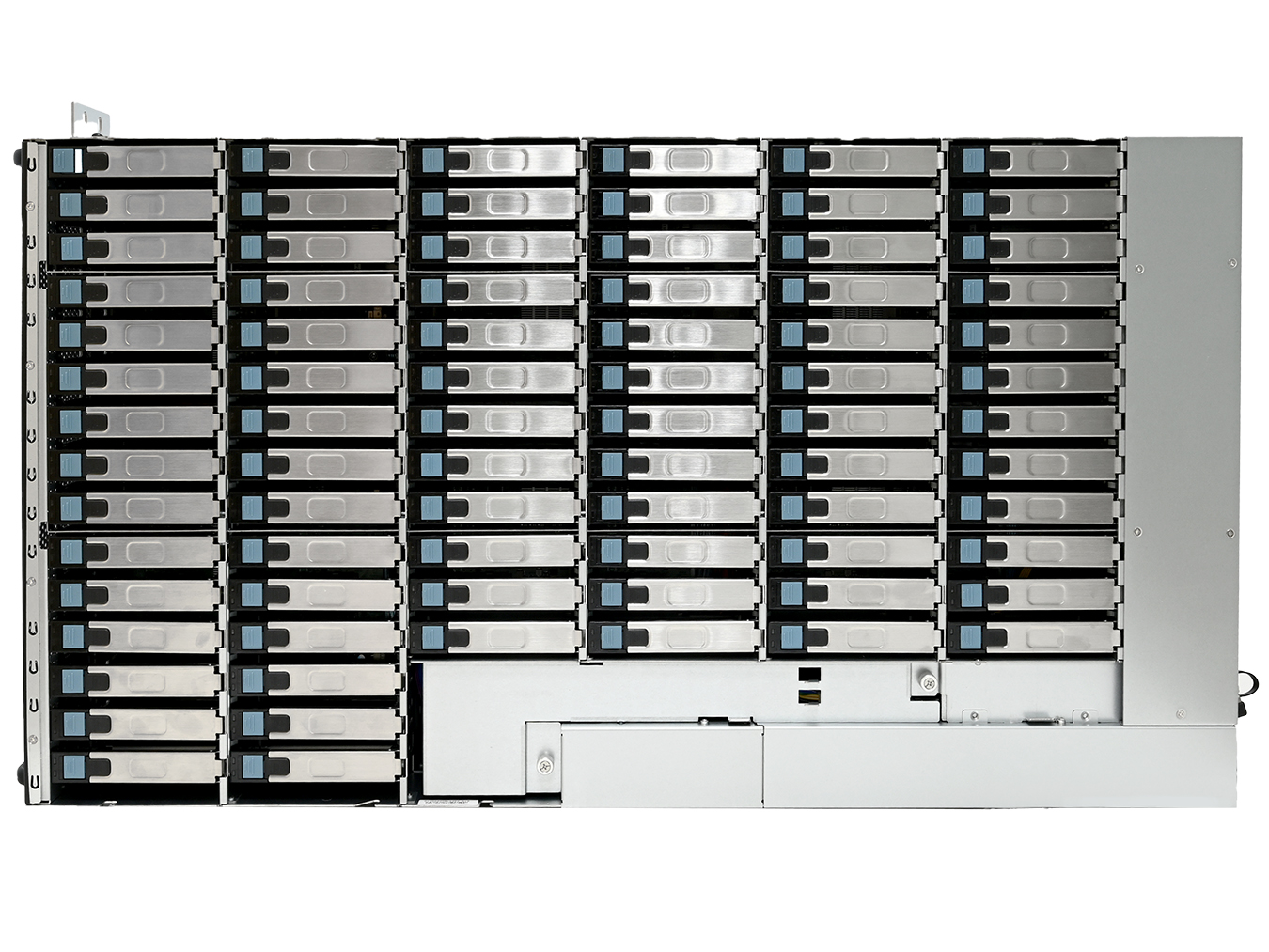

4U 78x 3.5" hot-swap bays, hot-swap JBOD with dual SAS 12G expander controller, dual BMC, tool-less HDD tray, 1600W 1+1 hot-swap redundant 80+ platinum, tool-less rail kit (35X series)
We also offer six months of free collocation in our TIER III data center.
| Product code | 202.178347 |
|---|---|
| Part number | XJ1-40781-02 |
| Manufacturer | AIC |
| Availability | On demand |
| Warranty | 36 months |
| Weight | 57.67 kg |
Server system integrator & worldwide shipping
Personal approach and tailor-made servers
NBD warranties & cross-shipping
Private cloud infrastructure
Pre-sales & After-sales support
Detailed information
AIC Servers
AIC's offers heavy-duty EMI-RFI-resistant industrial computer enclosures. Their scalable and cost-effective enclosure solutions encompass server and storage enclosures in a variety of form factors and specifications. AIC enclosures are designed to support the latest technology platforms in the market today, ensuring maximum compatibility with products from other component vendors.
Invest in Certainty
AIC, with over 30 years of experience, offers unmatched flexibility and scalability in the market. Its wide range of products allows maximum customization according to individual customer needs. With the trust the company places in its solutions, it provides extended warranties on its products for 5 years and more. The combination of efficient and modern design positions AIC at the forefront of the market, enabling it to quickly gain recognition in the mainstream.
-
- General
Number of Expander Dual Expander Chip Broadcom SAS35x48 Host/Expansion Interface 4 x Mini-SAS HD (SFF-8644) per expander module - Drives Supported
Drive Interface 12Gb & 6Gb SAS Form Factor 3.5” - Administration / Management
Admin/Firmware Upgrade In-band
IEM portLED Indicators, Audible Alarm Yes - Hot swap and Redundancy
Drive Bays 78 Cooling 8 x 60x56mm hot swap fans

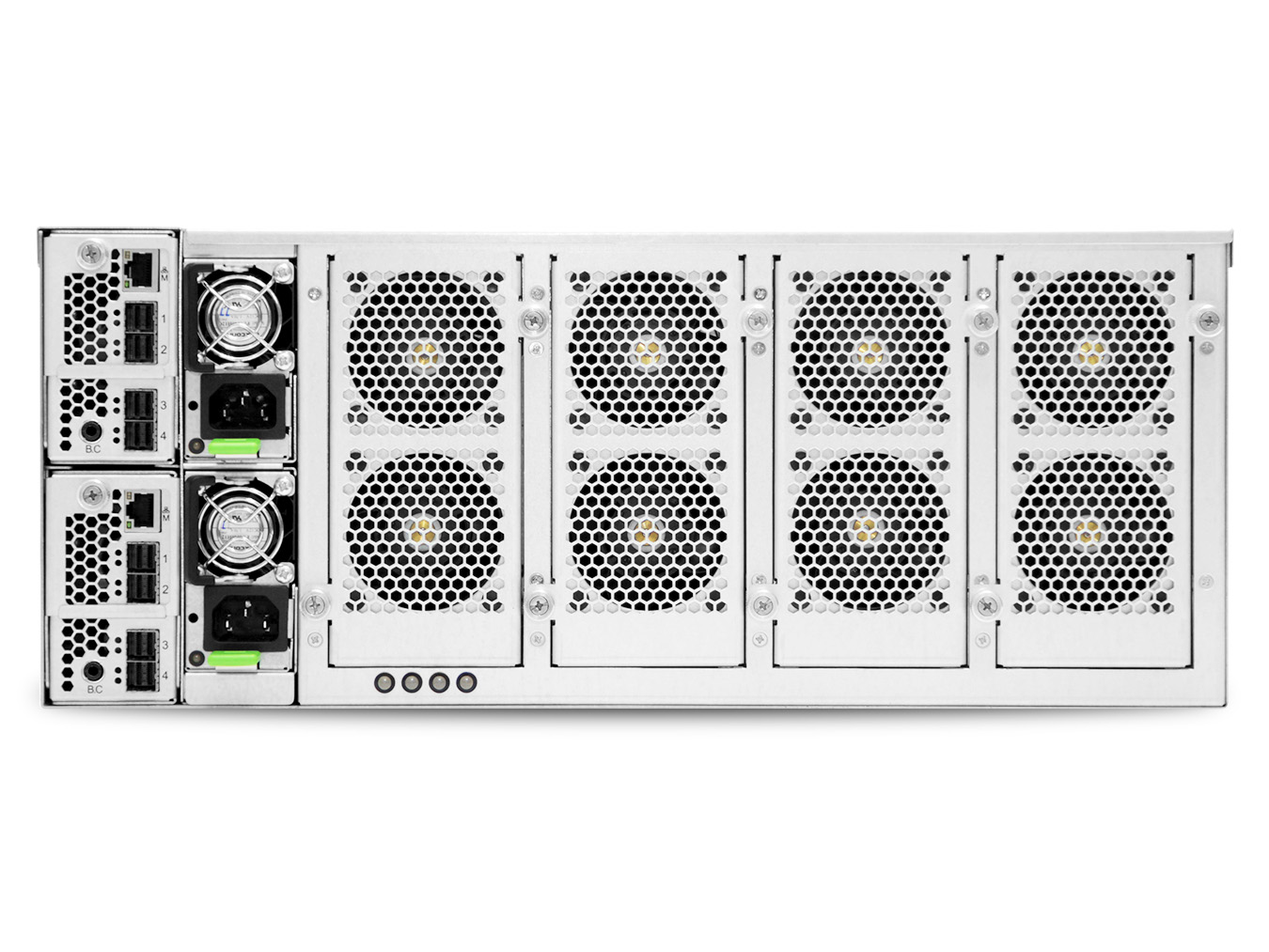

1 x 40x56mm fan per expander modulePower Supply 1600W 1+1 hot swap redundant 80+ Platinum Power Entry Dual AC Inlet
-
- Electrical and Environmental
Universal A/C Input 200-240Vac , 50/60Hz, 12A Operating Environment Temperature : 0ºC to 35ºC
Relative humidity : 20% to 80%Non-operating Environment Temperature : -20ºC to 60ºC
Relative humidity : 10% to 90%- Physical Specification
Dimensions (W x D x H) mm : 434 x 810.5 x 176
434 x 974.7 x 176 (with CMA)
inches : 17 x 31.9 x 7
17 x 38.4 x 7 (with CMA)Gross Weight (w/ PSU, Rail; w/o Pallet, Disks) kgs : 57.67
lbs : 127.1Packaging Dimensions (W x D x H) mm : 675 x 1120 x 536
inches : 26.6 x 44.1 x 21.1- Mounting
Standard 31” slide rail
Parameters
| Size in U | 4 |
|---|---|
| Depth (mm) | 810.5 |
| CPU manufacturer | None |
| Socket | None |
| HDD disks | 78 |
| 2.5" Drive bays | 0 |
| 3.5" Drive bays | 78 |
| NVMe slots | 0 |
| Total amount of PCIe | 0 |
| OCP/AIOM | 0 |
| Power (W) | 1600 |
| Efficiency certification | Platinum |
