AIC J4060-02-35X - XJ1-40602-04
4U 60x 3.5" hot-swap bays, easy-swap JBOD with single SAS 12G expander controller, tool-less HDD tray, 800W 1+1 DC336V CRPS, single BMC option, with tool-less slide rail (35X series) MOQ: 300pcs/lot
We also offer six months of free collocation in our TIER III data center.
| Product code | 202.180149 |
|---|---|
| Part number | XJ1-40602-04 |
| Manufacturer | AIC |
| Availability | On demand |
| Warranty | 36 months |
| Weight | 52.8 kg |
Server system integrator & worldwide shipping
Personal approach and tailor-made servers
NBD warranties & cross-shipping
Private cloud infrastructure
Pre-sales & After-sales support
Detailed information
AIC Servers
AIC's offers heavy-duty EMI-RFI-resistant industrial computer enclosures. Their scalable and cost-effective enclosure solutions encompass server and storage enclosures in a variety of form factors and specifications. AIC enclosures are designed to support the latest technology platforms in the market today, ensuring maximum compatibility with products from other component vendors.
Invest in Certainty
AIC, with over 30 years of experience, offers unmatched flexibility and scalability in the market. Its wide range of products allows maximum customization according to individual customer needs. With the trust the company places in its solutions, it provides extended warranties on its products for 5 years and more. The combination of efficient and modern design positions AIC at the forefront of the market, enabling it to quickly gain recognition in the mainstream.
-
- General
Number of Expander Single Expander Chip Broadcom SAS35x36R + Broadcom SAS35x28R Host/Expansion Interface 3 x Mini-SAS HD - Drives Supported
Drive Interface 12Gb and 6Gb SAS/SATA Form Factor 3.5” - Administration / Management
Admin/Firmware Upgrade In-band & Serial port interface
IEM port (Optional)LED Indicators, Audible Alarm Yes - Hot swap and Redundancy

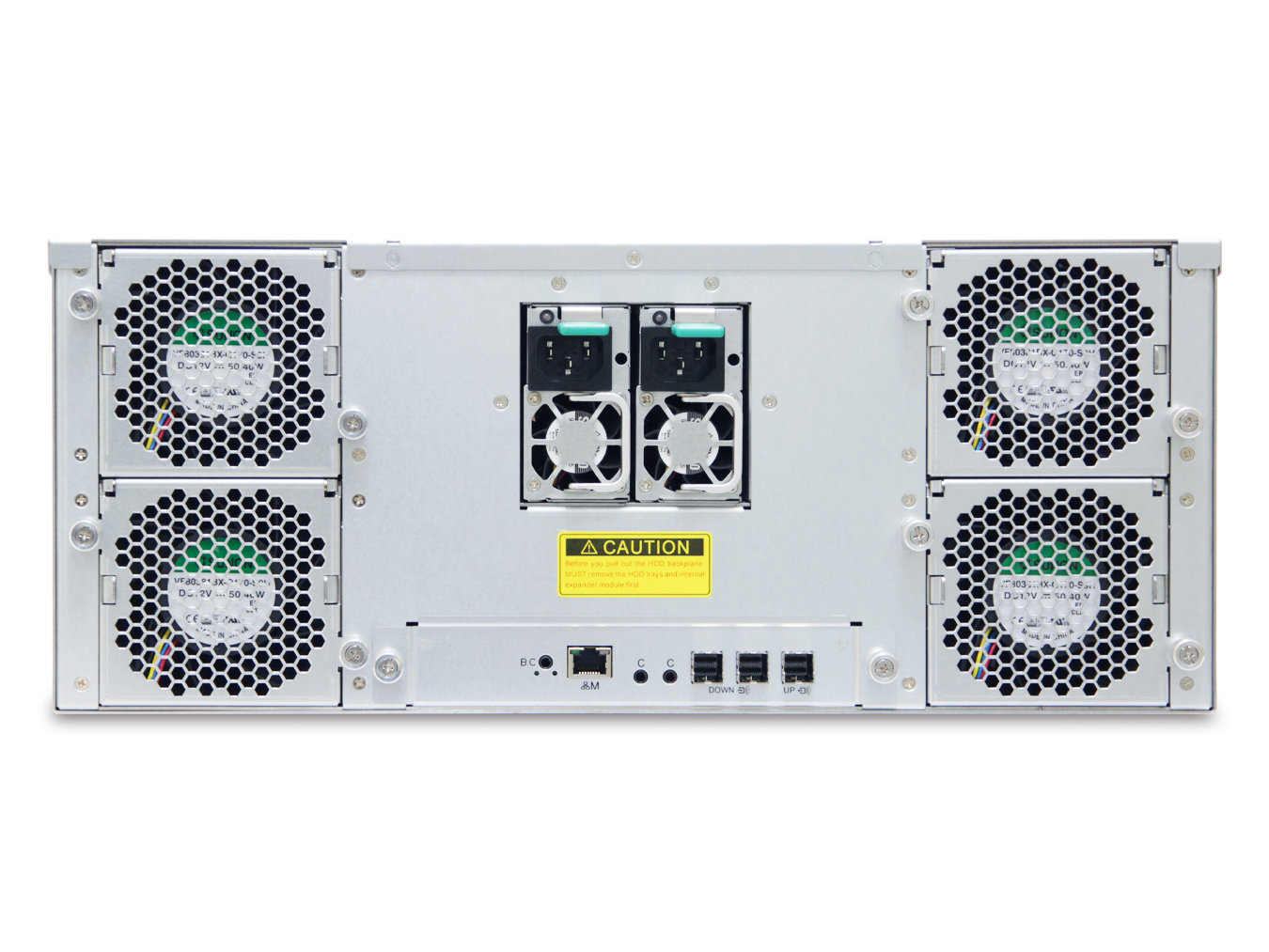

Drive Bays 60 Cooling 4 x 80x38mm hot swap fans Power Supply 800W 1+1 hot swap redundant DC336V CRPS Power Entry Dual AC Inlet
-
- Electrical and Environmental
Universal A/C Input 336HVDC Operating Environment Temperature : 0ºC to 35ºC
Relative humidity : 20% to 80%Non-operating Environment Temperature : -20ºC to 60ºC
Relative humidity : 10% to 90%- Physical Specification
Dimensions (W x D x H) mm : 435 x 795 x 175.8
inches : 17 x 31.3 x 6.9Gross Weight (w/ PSU, Rail; w/o Pallet, Disks) kgs : 52.8
lbs : 116.4Packaging Dimensions (W x D x H) mm : 620 x 1140 x 550
inches : 24.4 x 44.9 x 21.7- Mounting
Standard 26” tool-less slide rail
Parameters
| Size in U | 4 |
|---|---|
| Depth (mm) | 795 |
| CPU manufacturer | None |
| Socket | None |
| HDD disks | 60 |
| 2.5" Drive bays | 0 |
| 3.5" Drive bays | 60 |
| NVMe slots | 0 |
| Total amount of PCIe | 0 |
| OCP/AIOM | 0 |
| Power (W) | 800 |
| Efficiency certification | None/Unknown |
