Components Cases 2U Supermicro CSE-823MTQC-R802LPB

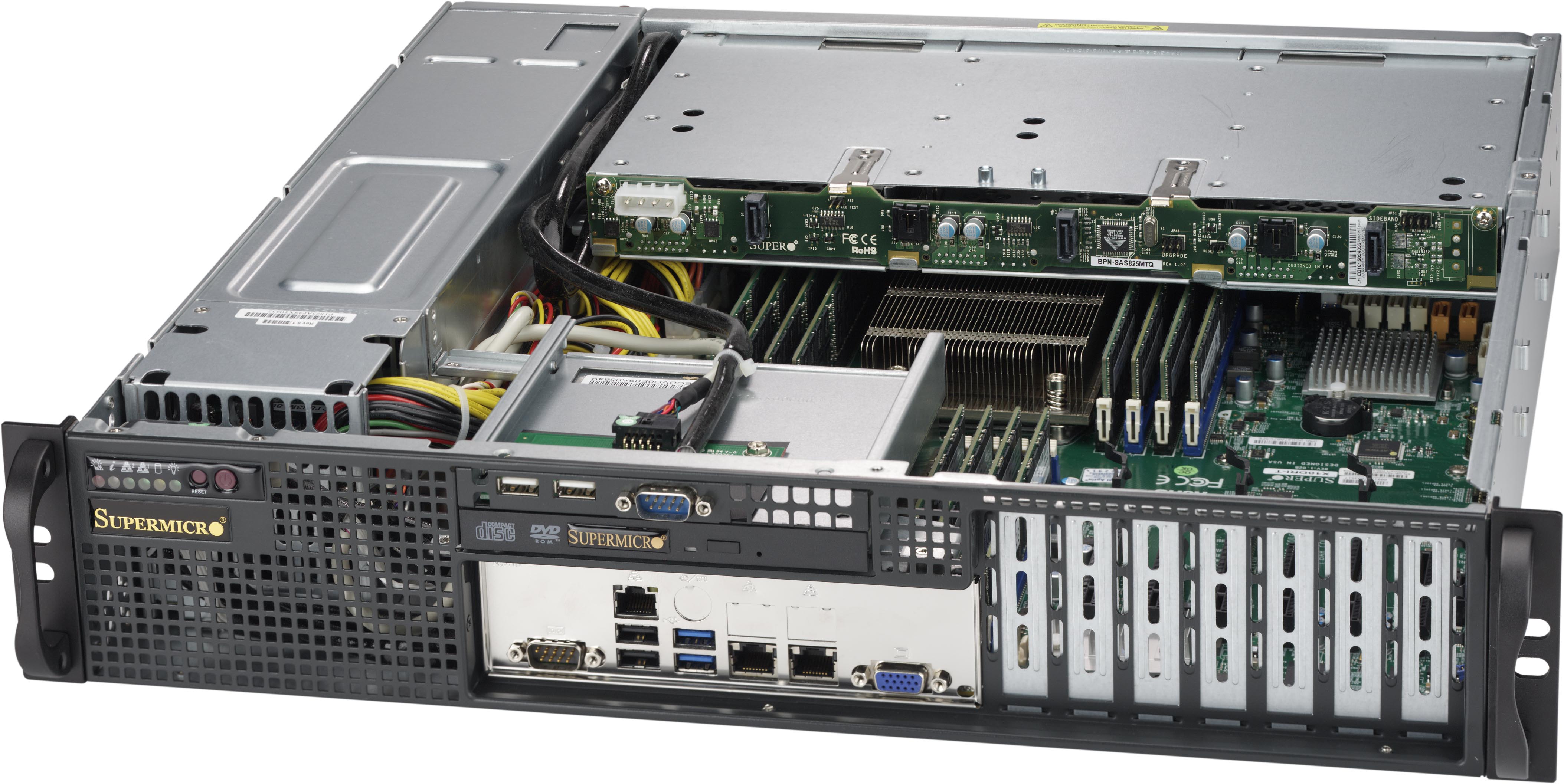

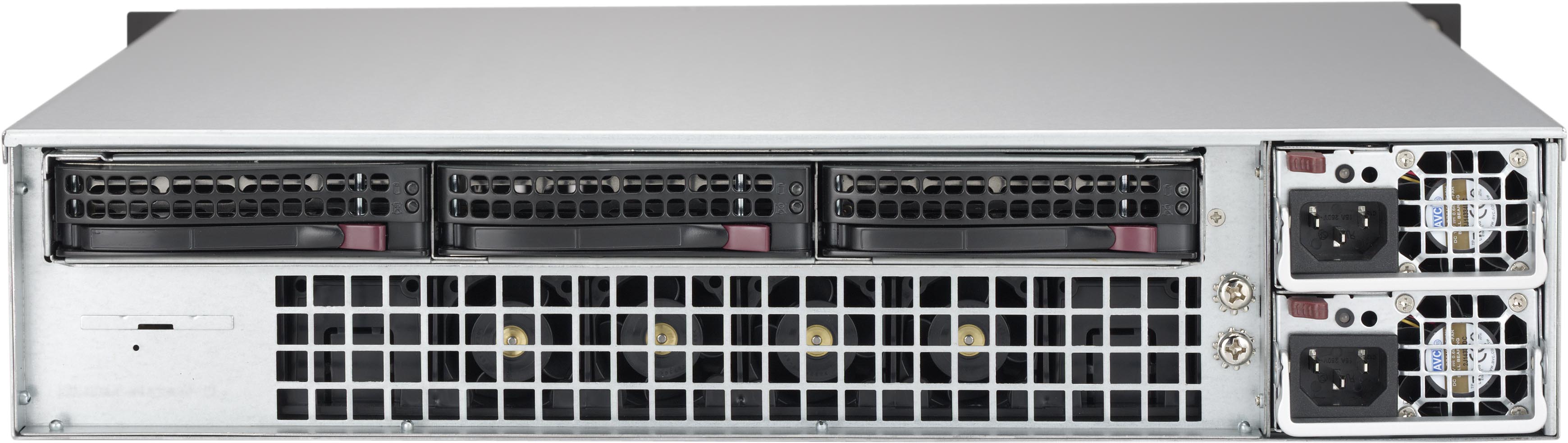

Supermicro CSE-823MTQC-R802LPB

2U chassis supports for maximum motherboard sizes - EE-ATX 13.68" x 13", E-ATX 12" x 13", ATX 12" x 10" motherboards 3 x 3.5" hot-swap SAS/SATA drive bay with SGPIO 3-port SC825M SAS3 12Gbps TQ backplane

We also offer six months of free collocation in our TIER III data center.

Components are not the end — ask us for a custom server configuration. We will design the server, assemble it, expertly set it up, and provide extended or NBD warranty.

Product code 202.349128
Part number CSE-823MTQC-R802LPB
EAN 672042291571
Manufacturer Supermicro
Availability
In stock 0 pc
Stock allocation and delivery options
Delivery to selected address
Friday 11. 7. at the latest Tuesday 22. 7.
Supplier availability In stock 23 pc
Warranty 24 months
Weight 21.6 kg
$ 1,315.41
pc

  1. Server system integrator & worldwide shipping
  2. Personal approach and tailor-made servers
  3. NBD warranties & cross-shipping
  4. Private cloud infrastructure
  5. Pre-sales & After-sales support


Detailed information





Key Features

  1. 2U chassis supports for maximum motherboard sizes - EE-ATX 13.68" x 13", E-ATX 12" x 13", ATX 12" x 10" motherboards
  2. 3 x 3.5" hot-swap SAS/SATA drive bay with SGPIO
  3. 3-port SC825M SAS3 12Gbps TQ backplane, support up to 3x 3.5-inch SAS3/SATA3 HDD/SSD
  4. 1U 800W Redundant Power Supply 76mm width, W/PMbus, Titanium
  5. 7 low-profile expansion slot(s)
  6. 4 x 4cm high-performance counter-rotating PWM fan(s) with optimal fan(s) speed control
  7. Optional 2 x 4cm high-performance counter-rotating PWM fan(s) with optimal fan(s) speed control



Product SKUs
CSE-823MTQC-R802LPB
  • SuperChassis 823MTQC-R802LPB

Form Factor
  • 2U chassis supports for maximum motherboard sizes - EE-ATX 13.68" x 13", E-ATX 12" x 13", ATX 12" x 10" motherboards

Processor Support
  • Dual and Single Intel® and AMD processors

Dimensions
Height
  • 3.5" (89 mm)
Width
  • 17.2" (437 mm)
Depth
  • 17.7" (450 mm)
Gross Weight
  • 42 lbs (19.05 kg)
Packaging (W x H x L)
  • 23.4" (594 mm) x 9.9" (251 mm) x 32.5" (826 mm)
Available Color
  • Black

Expansion Slots
  • 7 low-profile expansion slot(s)

Drive Bays
  • 3 x 3.5" hot-swap SAS/SATA drive bay with SGPIO

Backplane
  • 3-port SC825M SAS3 12Gbps TQ backplane, support up to 3x 3.5-inch SAS3/SATA3 HDD/SSD

Peripheral Drives
  • Optional 1 x slim DVD-ROM drive bay
  • Optional 2 x USB 2.0 ports
  • Optional 1 x COM port tray

Front Panel
Buttons
  • Power On/Off button
  • System Reset Button
LEDs
  • 2 Network Activity LEDs
  • HDD activity LED
  • Power Status LED
  • Power Fail LED
  • System Information LED
Systems Cooling
Fans
  • 4 x 4cm high-performance counter-rotating PWM fan(s) with optimal fan(s) speed control
  • Optional 2 x 4cm high-performance counter-rotating PWM fan(s) with optimal fan(s) speed control

Operating Environment (System)
Operating Temperature Range
  • 5°C - 35°C (41°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
  • 5% - 95% (non-condensing)

Power Supply
1U 800W Redundant Power Supply 76mm width, W/PMbus, Titanium
Power Efficiency
  • 96%
Total Output Power and Input
  • 800W with Input 100 - 240Vac
  • 800W with Input 200 - 240Vdc
AC Input Frequency
  • 50-60Hz
Dimensions (L x W x H)
  • 336 x 76 x 40 mm
Output Type
  • Backplanes (gold finger)
+12V
  • Max: 66A (100Vac - 240Vac)
  • Max: 66A (200 - 240)
+5Vsb
  • Max: 4A / Min: 0A
Power Distributor
  • PDB-PT823M-8824
  • O/P: 12V/75A
  • +5V Max: 30A
  • +3.3V Max: 24A
  • -12V Max: 0.6A
Certification
  • Titanium Certified  Titanium Certified

Regulatory (Power Supply)
Power Supply Safety / EMC
  • BSMI
  • CCC
  • CE/EMC
  • FCC class A
  • TUV/CB
  • UL/CUL
Standard Parts List
  Part Number Qty Description
Air Shroud MCP-310-29019-0N 1 SC823M Intel DP X10 Universal Mylar Air Shroud, 12x13MB
HD Backplane BPN-SAS3-825MTQ-P 1 3-port SC825M SAS3 12Gbps TQ backplane, support up to 3x 3.5-inch SAS3/SATA3 HDD/SSD
Cable(S) CBL-0071L 1 CBL,FRONT CNTL,16 TO 16 PIN,RA,RND TUBE,75CM,28AWG
Cable(S) CBL-0160L 2 NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt)
CD-ROM & Accessory MCP-290-82303-0B 1 Black DVD and USB dummy cover for SC823M
Fan(s) FAN-0157L4 4 40x40x56 mm 13K-11K RPM Counter-rotating Fan w/ a 160-mm Wire Coming out from the Fan Inlet Side,RoHS/REACH
Cooling Fan & Accessory MCP-320-82301-0B 1 Fan Tray for Six 4056 Fans
Cooling Fan & Accessory MCP-340-00035-0B 2 Dummy fan 40x56mm for 40x56 counter-rotating fan (cost-effective)
Drive Tray(s) MCP-220-00075-0B 3 Black gen 5.5 hot-swap 3.5"; HDD tray
Drive Tray(s) MCP-220-82301-0N 1 HDD cage housing 3 trays for SC823M
Power Distributor PDB-PT823M-8824 1 SC823M 24PIN REDUNDANT POWER DISTRIBUTOR
Power Supply & Accessory PWS-802A-1R 2 1U 800W 100-240Vac/47-63Hz, and DC240 input
Mounting Rail(s) MCP-290-00053-0N 1 Rail set, quick/quick, default for 2,3U 17.2";W
Rear Window MCP-240-82303-0B 1 Front I/O window for SC823M LP
Rear Window MCP-240-82304-0N 1 SC823M rear window

Parameters

Size in U 2
Depth (mm) 450
CPU manufacturer
Socket
HDD disks 3
2.5" Drive bays 0
3.5" Drive bays 3
NVMe slots 0
Total amount of PCIe
OCP/AIOM
Power (W) 800
Efficiency certification Titanium
