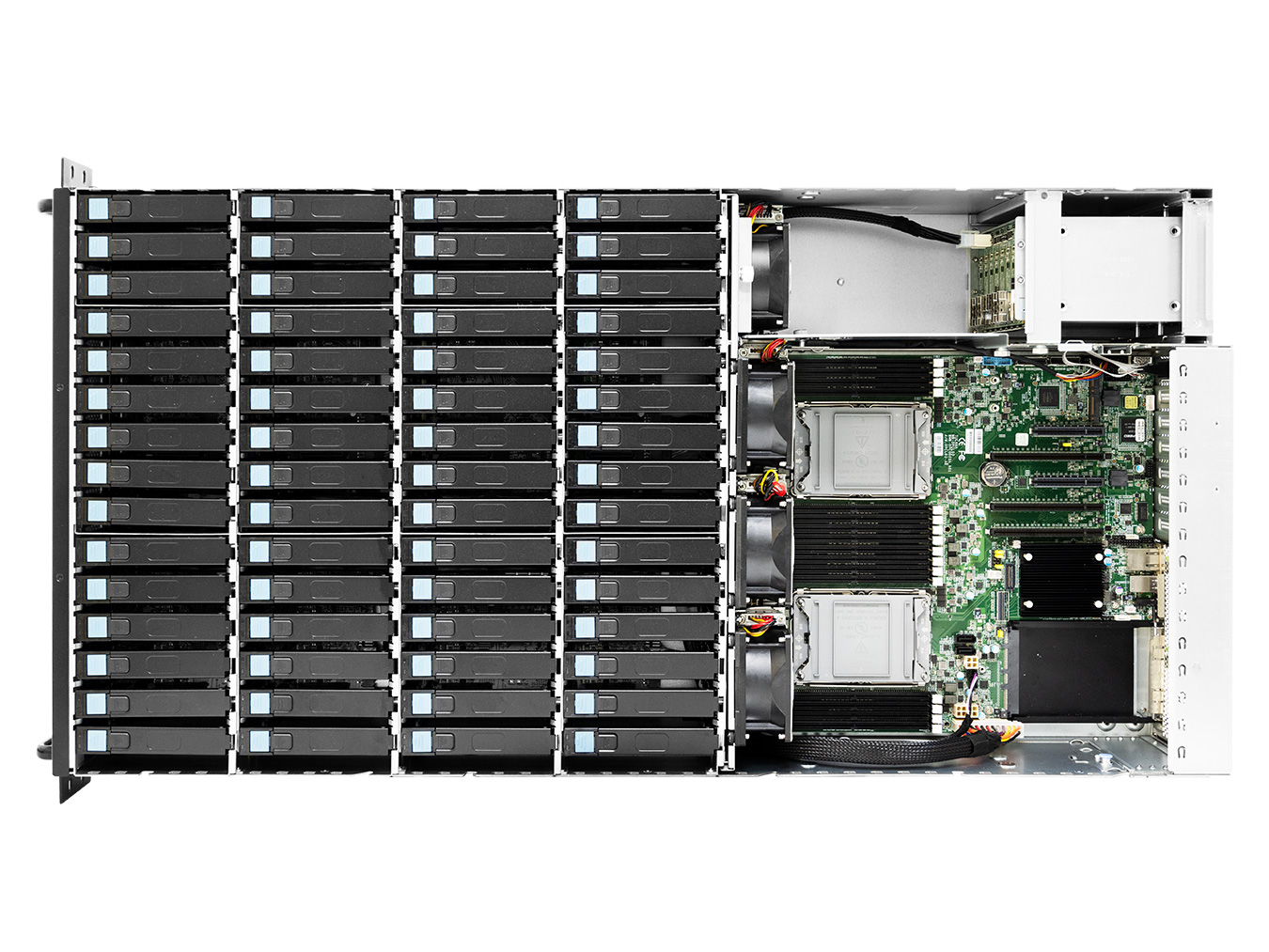

AIC SB407-TU - XP1-S407TU01
4U 60-bay, 12G (35X) EOB backplane, 8 bay 2.5" hotswap Tri-mode, Acbel CRPS 800W 2+2 Platinum, Tucana motherboard, Intel Lewisburg, DDR4 RDIMM x16, Intel PCH C621A, 1 x GbE dedicate IPMI, 3x PCIe x16 Gen.4, 2x PCIe x8 Gen.4, 1x OCP 3.0 x16 Gen.4, 2x M.2 PCIe/SATA, EATX, 2x CPU heatsink, 37" slide rail (for 1M and over 1M rack or post to post 671~940mm rack), pallet, w/o bezel
We also offer six months of free collocation in our TIER III data center.
| Product code | 202.180101 |
|---|---|
| Part number | XP1-S407TU01 |
| Manufacturer | AIC |
| Availability | On demand |
| Warranty | 36 months |
| Weight | 20 kg |
Server system integrator & worldwide shipping
Personal approach and tailor-made servers
NBD warranties & cross-shipping
Private cloud infrastructure
Pre-sales & After-sales support
Detailed information
AIC Servers
AIC's offers heavy-duty EMI-RFI-resistant industrial computer enclosures. Their scalable and cost-effective enclosure solutions encompass server and storage enclosures in a variety of form factors and specifications. AIC enclosures are designed to support the latest technology platforms in the market today, ensuring maximum compatibility with products from other component vendors.
Invest in Certainty
AIC, with over 30 years of experience, offers unmatched flexibility and scalability in the market. Its wide range of products allows maximum customization according to individual customer needs. With the trust the company places in its solutions, it provides extended warranties on its products for 5 years and more. The combination of efficient and modern design positions AIC at the forefront of the market, enabling it to quickly gain recognition in the mainstream.
-
- Motherboard
Model Tucana Socket Socket P+ (LGA-4189) QTY socket 2 Chipset Intel® C621A Dimensions 12" x 13" QTY MB 1 - Processor
Support 3rd Gen Intel® Xeon® Scalable Processors
(Ice Lake)Max. TDP 270W - System memory
Memory maximum Capacity 4096GB (LRDIMM 3DS 8Rx4 16Gb) Memory Slots 16x DIMM Memory Type DDR4 3200/2933MHz RDIMM/LRDIMM - Input/output
Network 1x GbE RJ45
1x GbE RJ45 dedicated BMC managementUSB 2x USB 3.0 double-stack Type-A connector Video 1x external VGA port Serial port 1x external COM port phone jack - Bios
BIOS type AMI UEFI BIOS Features ACPI
PXE
AC loss recovery
IPMI KCS interface
SMBIOS
Serial console redirection
SRIOV
TPM
PCIe hotplug
-
- Expansion slots
CPU0 2x PCIe Gen4 x16 slots
1x OCP V3.0
1x Slimline x8CPU1 1x PCIe Gen4 x16 slot
2x PCIe Gen4 x8
3x Slimline x8- Dimensions
Form Factor 4U Height 176 mm Width 434 mm Depth 853 mm - Storage
Drive Bays (Top Load) 60x SATA/SAS 3.5" Hot-Swap Drive Bays (Rear) 8x SATA/SAS/NVMe 2.5" Hot-Swap M.2 2x (supports both SATA/PCIe by PCH HSIO) Backplane 2x 30-port 12G SAS backplanes with 40-PHY expander - Power supply
Certification Platinum Power 800 W QTY 2+2 (redundant) - Cooling
Middle 4x 80x38mm hot swap fans
Parameters
| Size in U | 4 |
|---|---|
| Depth (mm) | 853 |
| CPU manufacturer | Intel |
| Socket | 4189 |
| HDD disks | 70 |
| 2.5" Drive bays | 8 |
| 3.5" Drive bays | 60 |
| NVMe slots | 8 |
| Total amount of PCIe | 5 |
| OCP/AIOM | 1 |
| Power (W) | 800 |
| Efficiency certification | Platinum |
